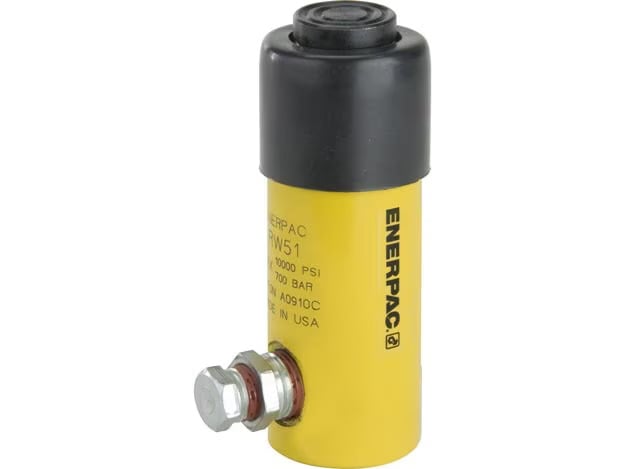

Enerpac
RW51

Manufacturer Article Name:

Workholding General Purpose Cylinder

Manufacturer Article Number:

RW51

Manufacturer Type Key:

not available

Manufacturer Article Description:

Cylindrical models High pressure design when additional force is required Long stroke lengths in a compact design, well suited for welding applications Collar mounting threads and base mounting holes allow flexible mounting options Cylinders are provided with hardened saddles for additional plunger protection Snap-in saddles are easily removed for adapting to different plunger devices Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life

From 311,16 €

excl. VAT

will be calculated in cart

Availability

Delivery in 31 business days*

CW 22

Wednesday, 28.05.2025

Packaging Unit

1 piece

per packaging unit

Quantity

Enerpac Workholding General Purpose Cylinder

RW51

Delivery in 31 business days*

311,16 €

excl. VAT

311,16 €

Delivery in 31 business days*

Mon - Fri from 8:00 AM - 6:00 PM

Currently unavailable

Available, via [email protected] or via +49 39203 863988

Shipping exclusively within the European Union

Need service or repair? Just contact us!

Large orders over €25,000? Find our conditions here

Features for RW51 from Enerpac

Dimension	Wert
type	HydraulicCylinders
Sub Types	Workholding General Purpose Cylinder
Series	RW
Maximum Operating Pressurebar	350
Maximum Operating Pressurepsi	10,000
Hubbereich (Zoll)	1.0 - 1.99
Maximaler Betriebsdruck (psi)	10,000
Zylinder effektiver Bereich Advance (Zoll3)	0.99
Öl Kapazität Fortschritt (Zoll3)	0.99
Kapazität der Zylinderkapazität um 5000 psi (Pfund)	4970
Betriebsdruck (psi)	600 - 10000
Maximale Zylinderkapazität (lbs)	2,000 - 4,999
Rückgabetyp	Single-Acting, Spring Return
Material	Steel
Kolben Typ	Solid

Dokumente

Datenblatt EN_GB Workholding_Cylinders_EN-GB RW51
Download
Datenblatt IT Workholding_Cylinders_IT RW51
Download
Datenblatt DE Workholding_Cylinders_DE RW51
Download
Datenblatt ES_LA Workholding_Cylinders_ES-LA RW51
Download
Datenblatt PT_BR Workholding_Cylinders_PT-BR RW51
Download
Datenblatt EN_US Workholding_Cylinders_EN-US RW51
Download
Technische Literatur EN L1209_c RW51
Download
Technische Literatur EN L399_d RW51
Download
Technische Literatur EN L1608_i RW51
Download

Further information for RW51 from Enerpac

Dimension	Wert
Artikel-Authentizität	Originalartikel
Artikelzustand	Neu
Einzelgewicht	833 g
Maße (L x B x H)	nicht verfügbar
Ursprungsland**	CN🇨🇳
Zolltarifnummer	84122180
RoHS konform	Auf Anfrage
Hersteller	Enerpac
